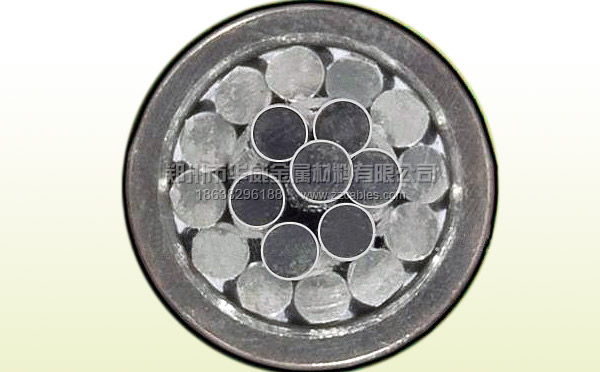

鋁包鋼芯鋁合金絞線

產品類別：鋁包鋼絞線
產品名稱：鋁包鋼芯鋁合金絞線
點擊次數：
摘要：
鋁包鋼芯鋁合金絞線也可以叫鋁包鋼芯鋁合金導線，鋁包鋼芯鋁合金架空導線，鋁包鋼芯鋁合金架空絞線，華威鋁包鋼芯鋁合金絞線擁有技術，獨特的生產工藝，保證產品質量穩定。

鋁包鋼芯鋁合金絞線的參數和性能：

JLHA1/LB1A、JLHA1/LB14鋁包鋼芯鋁合金絞線性能參數

標稱截面	結構		計算截面			外徑	20℃直流電阻		額定抗拉力		單位重量
	結構		計算截面				JLHA1		JLHA1		JLHA1
	鋁	鋼	鋁	鋼	合計		LB1A	LB14	LB1A	LB14	LB1A	LB14
50/30	12/2.32	7/2.32	50.73	29.59	80.32	11.60	0.5378	0.5710	52.00	58.21	336	352
70/40	12/2.72	7/2.72	69.73	40.67	110.40	13.60	0.3913	0.4154	71.47	80.01	462	484
95/15	26/2.15	7/1.67	94.39	15.33	109.70	13.61	0.3341	0.3404	49.07	52.29	362	371
95/20	7/4.16	7/1.85	95.14	18.82	114.00	13.87	0.3257	0.3332	52.55	56.51	386	397
95/55	12/3.20	7/3.20	96.51	56.30	152.80	16.00	0.2827	0.3002	98.93	107.37	639	670
120/7	18/2.90	1/2.90	118.90	6.61	125.50	14.50	0.2754	0.2773	46.57	47.96	371	375
120/20	26/2.38	7/1.85	115.70	18.82	134.50	15.07	0.2725	0.2777	60.18	64.11	444	455
120/25	7/4.72	7/2.10	122.50	24.25	146.80	15.74	0.2529	0.2587	68.91	72.78	497	511
120/70	12/3.60	7/3.60	122.20	71.25	193.50	18.00	0.2233	0.2371	119.70	129.69	809	849
150/8	18/3.20	1/3.20	144.80	8.04	152.80	16.00	0.2262	0.2277	56.70	57.91	452	458
150/20	24/2.78	7/1.85	145.70	18.82	164.70	16.67	0.2189	0.2223	69.93	73.89	527	537
150/25	26/2.70	7/2.10	148.86	24.25	173.11	17.10	0.2118	0.2159	77.48	82.62	572	583
150/35	30.2.50	7/2.50	147.26	34.36	181.62	17.50	0.2088	0.2144	89.09	96.24	634	654
185/10	18/3.60	1/3.60	183.20	10.18	193.40	18.00	0.1787	0.1799	69.32	70.74	572	577
185/25	24/3.15	7/2.10	187.00	24.25	211.30	18.90	0.1706	0.1732	89.89	94.97	677	693
185/30	26/2.98	7/2.32	181.30	29.59	210.90	18.88	0.1739	0.1772	94.44	100.64	697	713
185/45	30/2.80	7/2.80	184.73	43.10	227.83	19.60	0.1665	0.1709	111.76	120.80	796	810
210/10	18/3.80	1/3.80	204.10	11.34	215.50	19.00	0.1604	0.1615	76.78	78.81	637	643
210/25	24/3.33	7/2.22	209.00	27.10	236.10	19.98	0.1526	0.1549	100.45	106.14	756	771
210/35	26/3.22	7/2.50	211.70	34.36	246.10	20.38	0.1489	0.1518	110.04	117.25	812	831
210/50	30/2.98	7/2.98	209.20	48.82	258.10	20.86	0.1470	0.1509	126.59	136.83	901	928
240/30	24/3.60	7/2.40	244.30	31.67	276.00	21.60	0.1306	0.1326	114.96	121.61	884	901
240/40	26/3.42	7/2.66	238.80	38.90	277.70	21.66	0.1320	0.1315	124.31	132.46	917	939
240/55	30/3.20	7/3.20	241.30	56.30	297.80	22.40	0.1274	0.1308	145.97	154.43	1039	1070
300/15	42/3.O0	7/1.67	296.90	15.33	312.20	23.01	0.1107	0.1114	114.88	118.11	921	930
300/20	45/2.93	7/1.95	303.40	20.91	324.30	23.43	0.1077	0.1086	123.70	128.09	976	988
300/25	48/2.85	7/2.22	306.20	27.10	333.30	23.76	0.1060	0.1071	132.04	137.73	1025	1040
300/40	24/3.99	7/2.66	300.10	38.90	339.00	23.94	0.1063	0.1079	141.21	149.38	1085	1107
300/50	26/3.83	7/2.98	299.50	48.82	348.40	24.26	0.1053	0.1073	152.94	163.18	1150	1176
300/70	30/3.60	7/3.60	305.40	71.25	376.60	25.20	0.1007	0.1034	180.47	187.40	1315	1355
400/20	42/3.51	7/1.95	406.40	20.91	427.30	26.91	0.0809	0.0814	153.11	157.50	1260	1273
400/25	45/3.33	7/2.22	391.90	27.10	419.00	26.64	0.0834	0.0841	159.89	165.58	1262	1277
400/35	48/3.22	7/2.50	390.90	34.36	425.20	26.82	0.0830	0.0839	168.27	175.49	1307	1326
400/50	54/3.07	7/3.07	399.70	51.82	451.50	27.63	0.0800	0.0812	192.10	202.97	1448	1477
400/65	26/4.42	7/3.44	398.90	65.06	464.00	28.00	0.0790	0.0805	202.44	213.48	1532	1568
400/95	30/4.16	19/2.50	407.80	93.27	501.00	29.14	0.0755	0.0775	240.37	259.97	1746	1798
500/35	45/3.75	7/2.50	497.00	34.36	531.40	30.00	0.0658	0.0663	197.79	205.00	1600	1619
500/45	48/3.60	7/2.80	488.60	43.10	531.70	30.00	0.0664	0.0671	205.62	214.68	1635	1659
500/65	54/3.44	7/3.44	501.90	65.06	566.90	30.96	0.0637	0.0647	239.88	250.95	1818	1853
630/45	45/4.20	7.2.80	623.50	43.10	666.60	33.60	0.0524	0.0528	248.11	257.17	2007	2030
630/55	48/4.12	7/3.20	639.90	56.30	696.20	34.32	0.0507	0.0513	269.13	277.57	2141	2171
630/80	54/3.87	19/2.32	636.20	80.32	715.50	34.82	0.0503	0.0511	296.47	313.65	2290	2340
800/55	45/4.80	7/3.20	814.30	56.30	870.60	38.40	0.0401	0.0405	324.06	332.51	2622	2653
800/70	48/4.63	7/3.60	808.20	71.25	879.40	38.58	0.0402	0.0406	335.79	345.78	2704	2739
800/100	54/4.33	19/2.60	795.20	100.90	896.10	38.98	0.0402	0.0409	371.53	392.76	2868	2919
